2019-2024 RAM HD ANIMATED SWITCHBACK LED Grill Accent Lights Kit

Sparksmith V2 ANIMATED SCANNING SWITCHBACK LED DRL center grill accent bars for your 2019-2024 RAM 1500 & HD 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited) that feature an animated, scanning, moving startup sequence for the white or amber DRL LEDs and also feature a sequential, moving switchback turn signal (white DRL switches to moving sequential amber/orange turn signal, then switches back to solid white).  If you apply steady power to the turn signal wire, it will scan once, then stay solid amber. If you want solid orange DRL lights, this is the way to do it but you will lose the turn signal function.

PLUG & PLAY HARNESSES - Plug in between your headlight and wiring harness for quick and easy connections to your factory DRLs and turn signals

 We include all the parts you will need to ensure this is a quick, easy to install, and durable upgrade for your truck that is sure to set it apart from other trucks on the road. The Sparksmith V2 grill strips also have a 3 YEAR WARRANTY! Get these powerful accent-running LED grill lights for your truck to immediately stand out from the crowd. Give your vehicle an instant upgrade while also improving your visibility on the road. These grill lights are the perfect choice if you want to add glow to your truck while keeping your OEM grill and enhancing the appearance. When the lights are turned off, you'll hardly notice them!

The new and improved Sparksmith V2 design features:

• PROFESSIONALLY ENGINEERED IN THE USA
• TRULY IP67 WATERPROOF
• DURABLE, THICKER WIRING
• SLEEK, MODERN DESIGN
• FAR MORE RELIABLE
• 3 YEAR WARRANTY!

TOP + BOTTOM FULL LENGTH BARS FOR 2500 3500 MODELS HERE (NOT ANIMATED)

TOP + BOTTOM FULL LENGTH BARS FOR 1500 MODELS HERE (NOT ANIMATED)

>>CLICK HERE TO SEE A DEMO VIDEO<<

The kit comes with universal mounting hardware, extra color-coded wiring, heat-shrink waterproof connectors, plus a fuse tap to make install simple. Just cut the wiring to length, use the included connectors to join the wiring to the strip wires, connect wires to preferred 12v+ source, ground (can use frame) and turn signal +, mount your strips with the included hardware and brackets, then hit the streets!

These lights are ready to install right out of the box with the installation kit included, just use the included wiring and connectors.

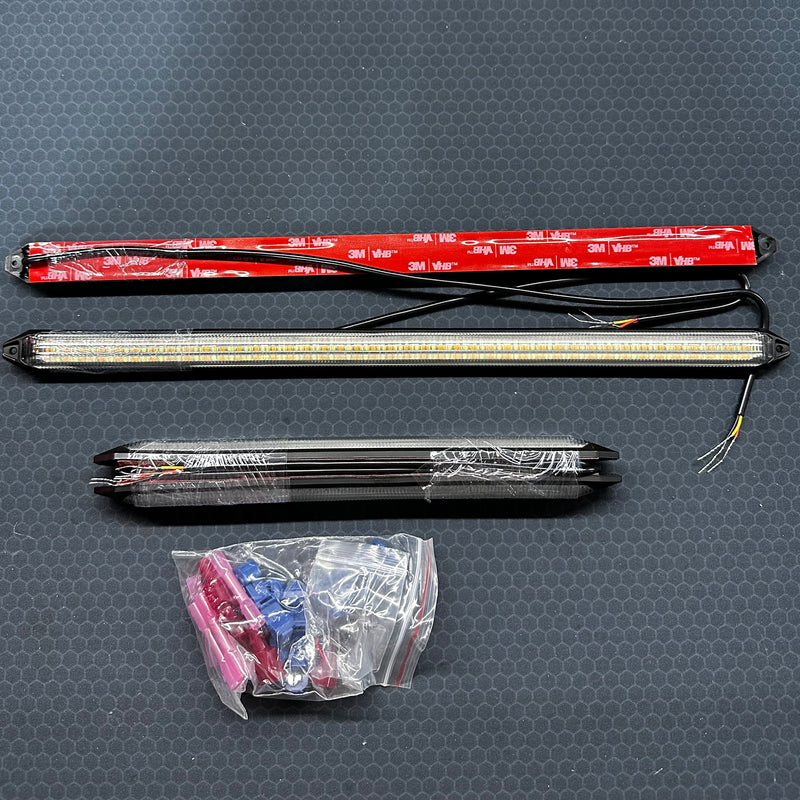

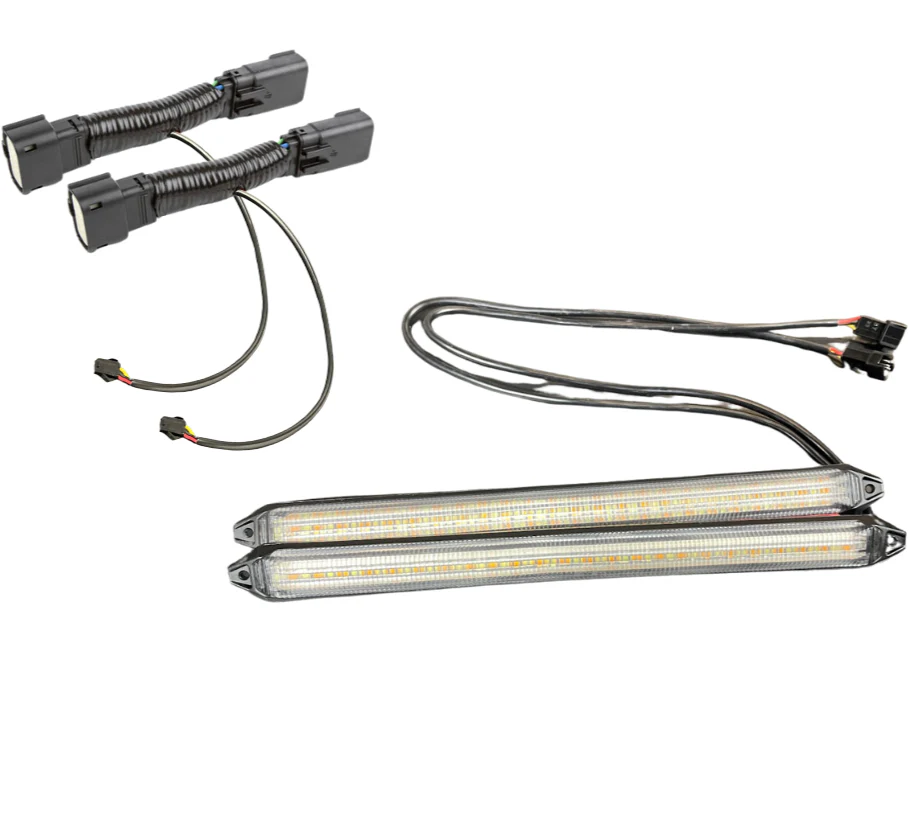

What’s in the Package:

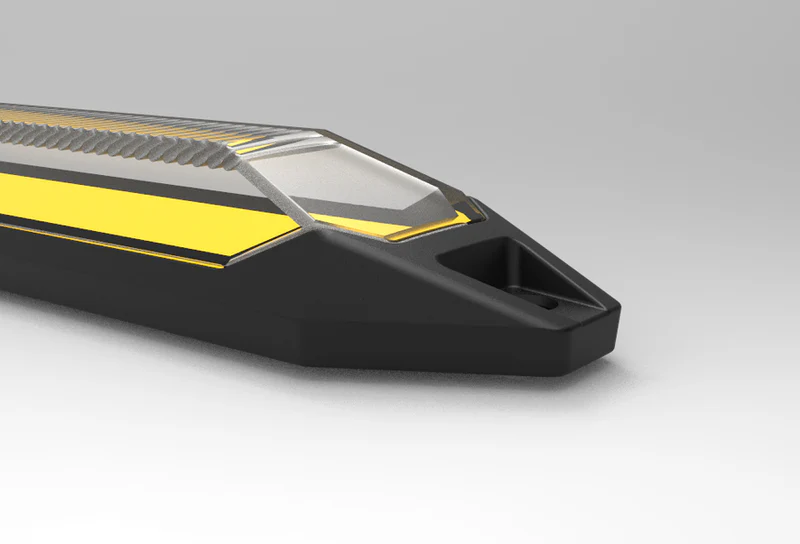

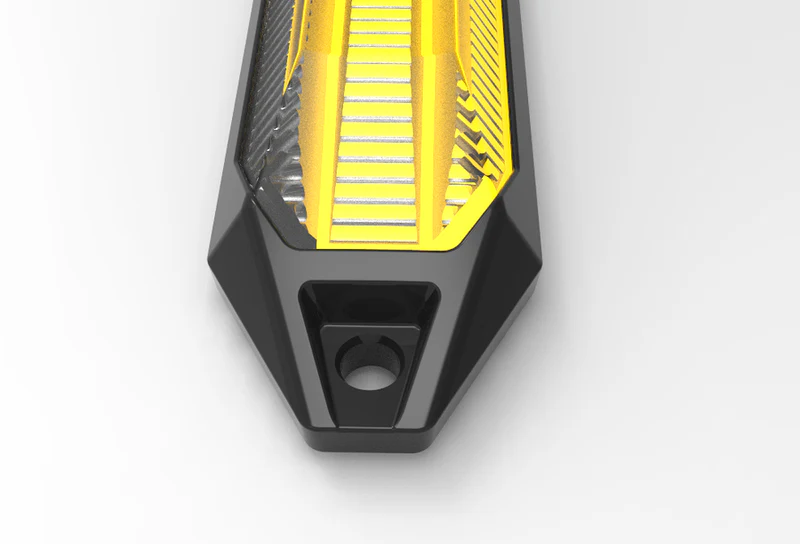

• STRIPS: 2 Animated switchback white/amber LED Center Grill Light bars
• HARDWARE: Sheet metal screws, Self drilling, Phillips pan head, Stainless steel 410

• INSTRUCTIONS: General installation instructions

Optional Wiring + Mounting Bar Kit: Includes 10ft of wiring, fuse tap, wire connectors, aluminum mounting bars, and self tapping screws. This is used if you do not add on the harnesses.

Vehicle compatibility:

• 2019 RAM 1500 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited)
• 2020 RAM 1500 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited)
• 2021 RAM 1500 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited)
• 2022 RAM 1500 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited)
• 2023 RAM 1500 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited)
• 2024 RAM 1500 2500 3500 truck (Tradesman, Big Horn, Laramie, Laramie Longhorn, Limited)

• HALOGEN & LED REFLECTOR HEADLIGHTS (12-pin connector)

  • 2019-2023 Ram 2500/3500 Tradesman
  • 2019-2023 Ram 2500/3500 Big Horn
  • 2019-2023 Ram 2500/3500 Laramie
  • 2019-2023 Ram 2500 Power Wagon (Fits Level 1 Equipment Group only)
  • 2023 Ram 2500 Rebel (Fits Level 1 Equipment Group only, Level 2 Needs Starkey #10332)
  • All Ram 2500/3500 models with LED Reflector OR Halogen Headlights (12-pin connector)
• AFLS ADAPTIVE LED PROJECTOR HEADLAMPS  (16-pin connector)
  • 2019-2023 Ram 2500/3500 Limited
    2019-2023 Ram 2500/3500 Limited Longhorn
    2019-2023 Ram 2500 Power Wagon (Fits Level 2 Equipment Group only, Level 1 Needs Starkey #10232)
    2023 Ram 2500 Rebel (Fits Level 2 Equipment Group only)
• CONNECTIONS: Fits OEM halogen and both LED style headlight plugs

TECH SPECS:

PRIMARY FUNCTION: White with animated, scanning startup sequence
SECONDARY: Amber/Orange sequential switchback turn signal
LIGHT SOURCE: Proprietary 2835 SMD LED
LUMEN RATING: 2400 Lumens per strip (11")
POWER: 10W per strip (11")
EXPECTED LIFESPAN: 50,000 hours
PCB WIDTH: 17mm
PCB THICKNESS: 16mm
DRIVER HOUSING: Cast Silicone & ABS
DRIVER PROTECTION: Full internal Potting
COLOR WHEN OFF: Neutral White

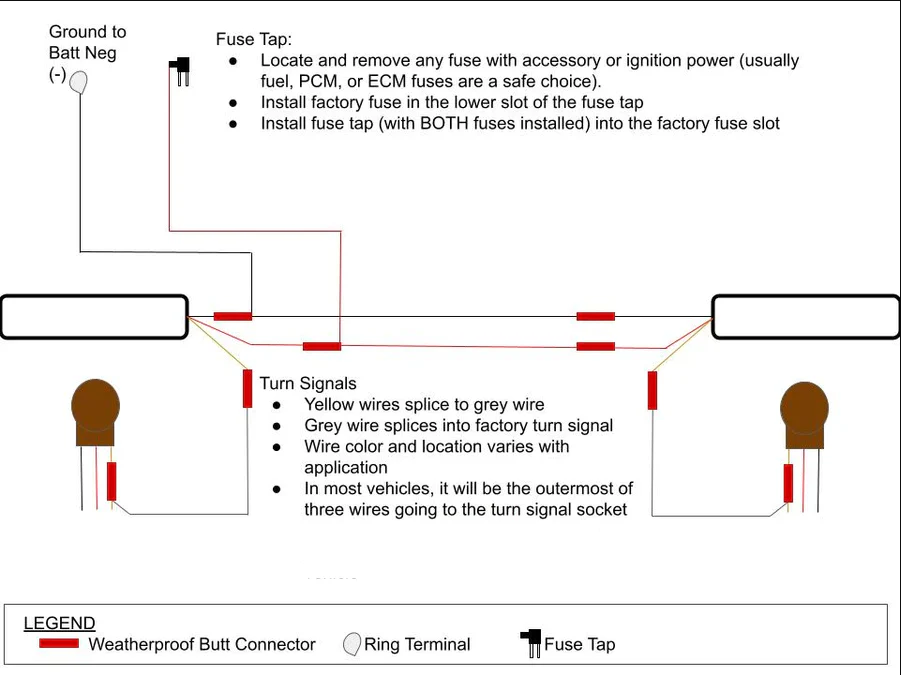

WIRING:

1) Black wires to ground
2) Red wires go to the fuse tap which gets power from a switched 12V fuse under the hood (typically an ECM, PCM, or fuel pump fuse).
3) Each yellow wire goes to your factory turn signal.

CLICK HERE FOR A GENERAL INSTALLATION GUIDE
