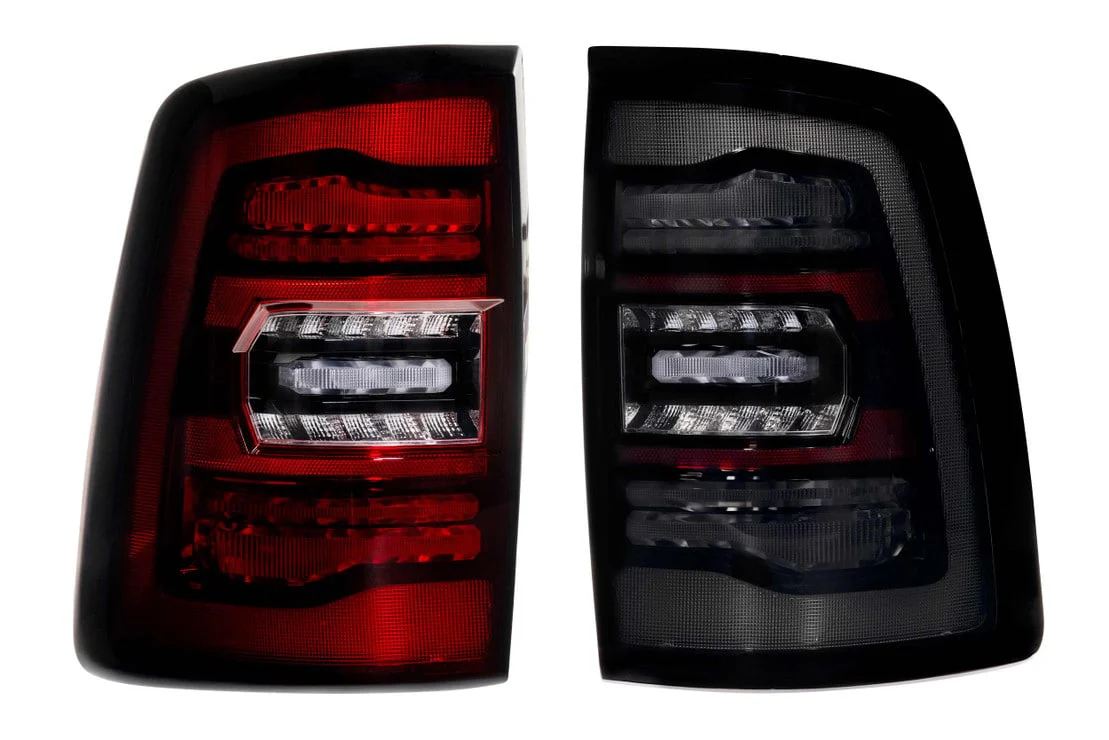

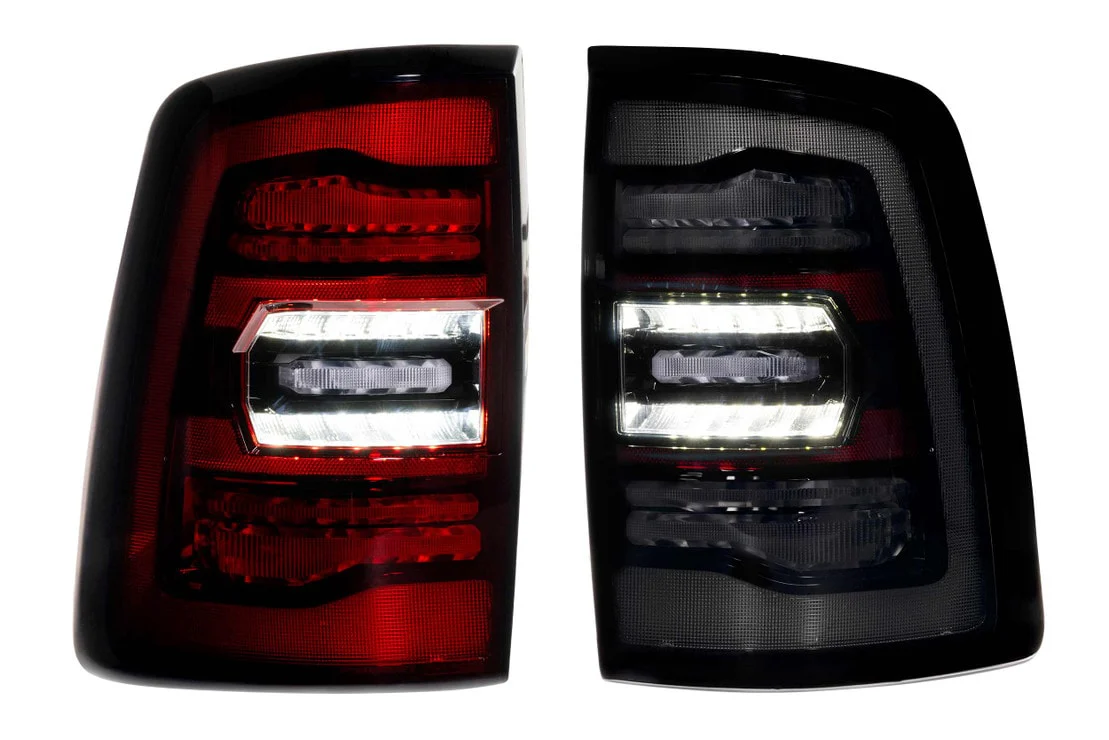

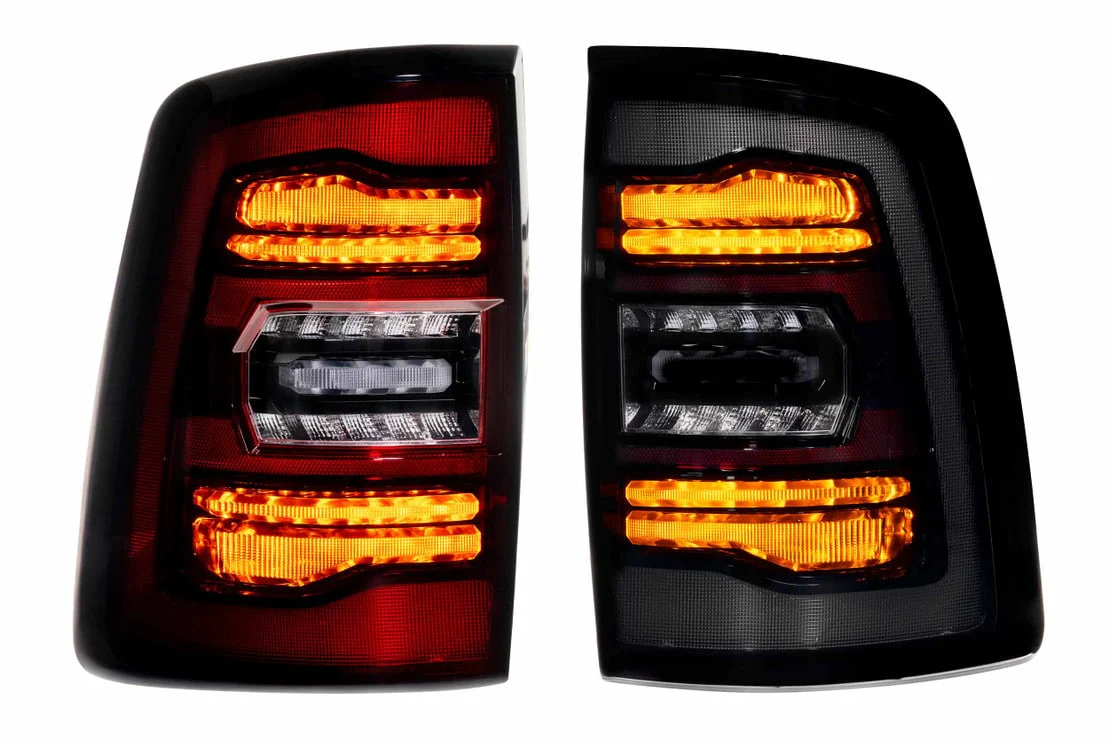

2019-2024 Ram HD 2500 Red Smoked XB LED Tail Lights

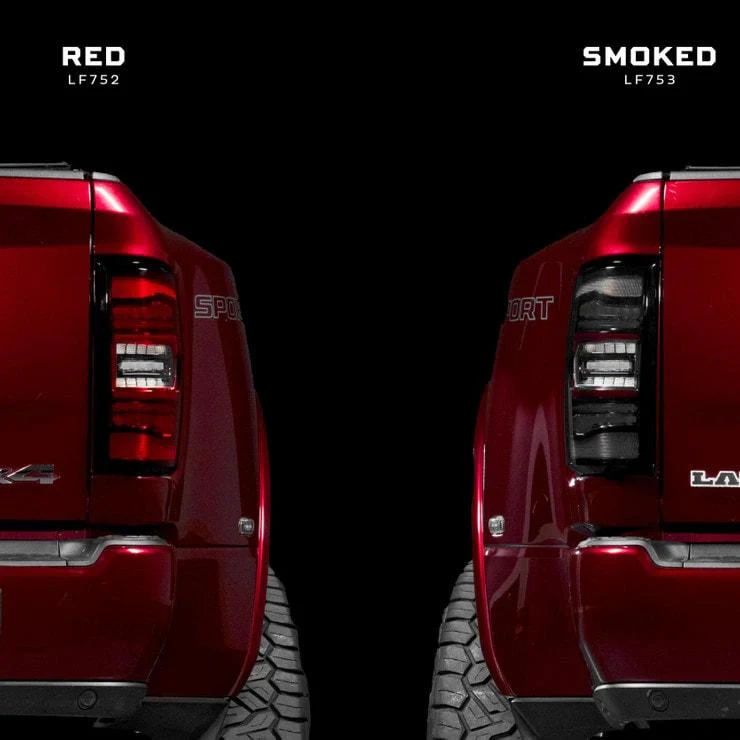

Full LED tail lights for your 2019-2024 Ram HD 2500 3500 truck are compatible with all models/trim levels including models with the basic halogen tail lights or the LED taillights. The modern design of these tail lights  was inspired by the new generation LED tail lights on the 2019+ Ram HD trucks. The tail lights feature extremely bright LED brake lights, turn signals, running lights, and MUCH brighter reverse lights. Installation is as simple as removing 2 bolts per side, unplugging your factory tail lights, then plugging the new ones in! The kit includes everything you need for a plug & play, 10 minute installation. Available styles include red lenses or smoked lenses.

***Will cause error message on 19+ Ram HD trucks that came with blind spot monitoring (BLIS) from the factory.

Part Number: LF753

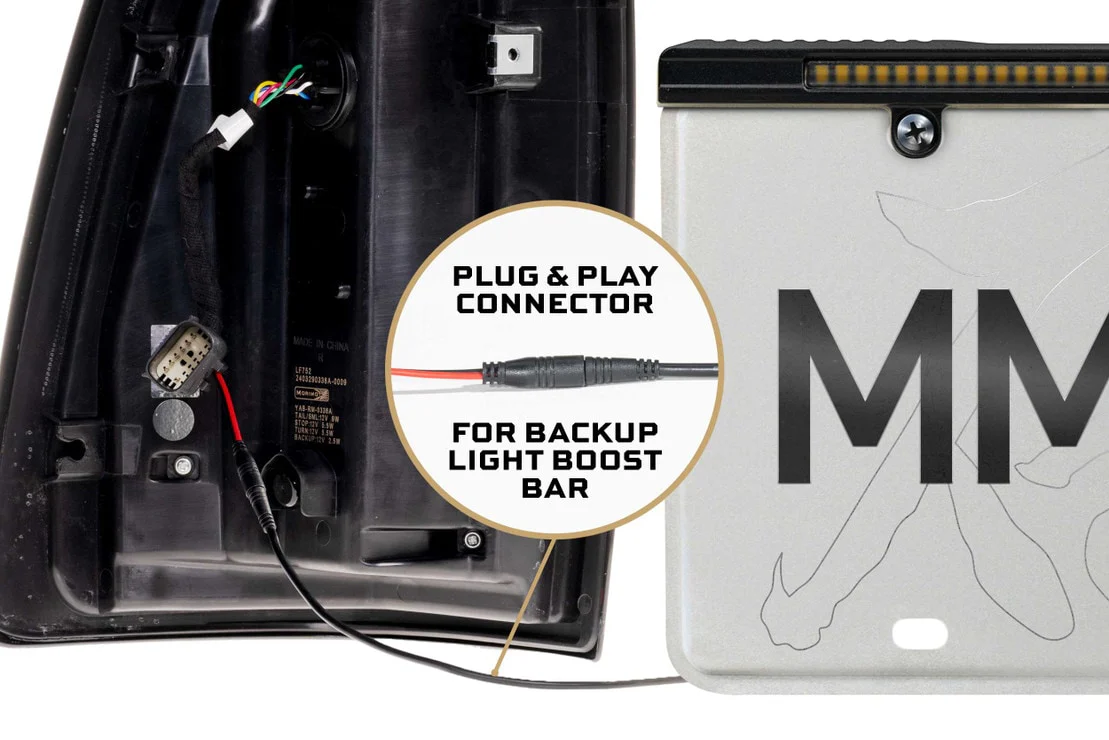

Adding on the new LED Reverse Backup Booster bar provides you with a quick and easy to install LED bar that bolts directly to your license plate and produces an extra 5000 Lumens of reverse light output. Whats better is that they simply plug into the back of the new tail lights, no wiring required! See the video below for more information on the quick install process.

The new blacked out +clear lens full LED 3rd brake light for all



2019+ Ram HD can also be added on. Scroll to the end of the photos and check out the video below for a demonstration  A flasher module can be added on for an F-1 style flashing effect for $25 (See video below)

2019+ Ram HD 2500 3500 Red/Smoked Tail Lights Install Guide



2019+ Ram HD 2500 3500 Red/Smoked Tail Lights Overview & Installation Video:

Optional Back-Up Reverse Boost Bar:

Optional Smoked 3rd Brake Light Video:

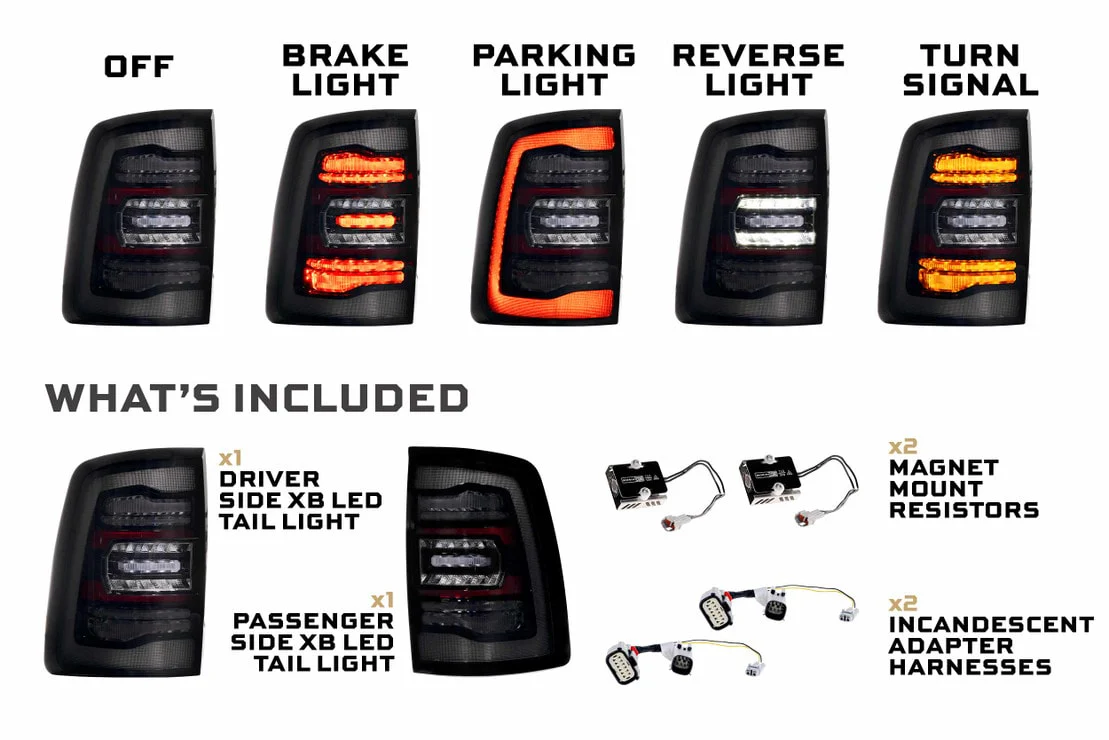

Package Includes:

• TAIL LIGHTS: 2x (One Pair)
• WIRING: Plug and Play Adapter Harness (For OE Halogen trucks)
• BLIS BRACKETS: Die-cast radar mounts / heatsinks (Internal BLIS modules must be swapped)
• WARRANTY: 5 Years

Tech Specs:

• Input: Ram Multi-Pin OEM

• Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

• Light Source: SSC LED

• Reverse Light: White

• Brake Light: Red

• Parking Light: Red

• Turn Signal: Amber



Replaces Dodge Part #: 68361716AD, 68361717AD, 68361715AE

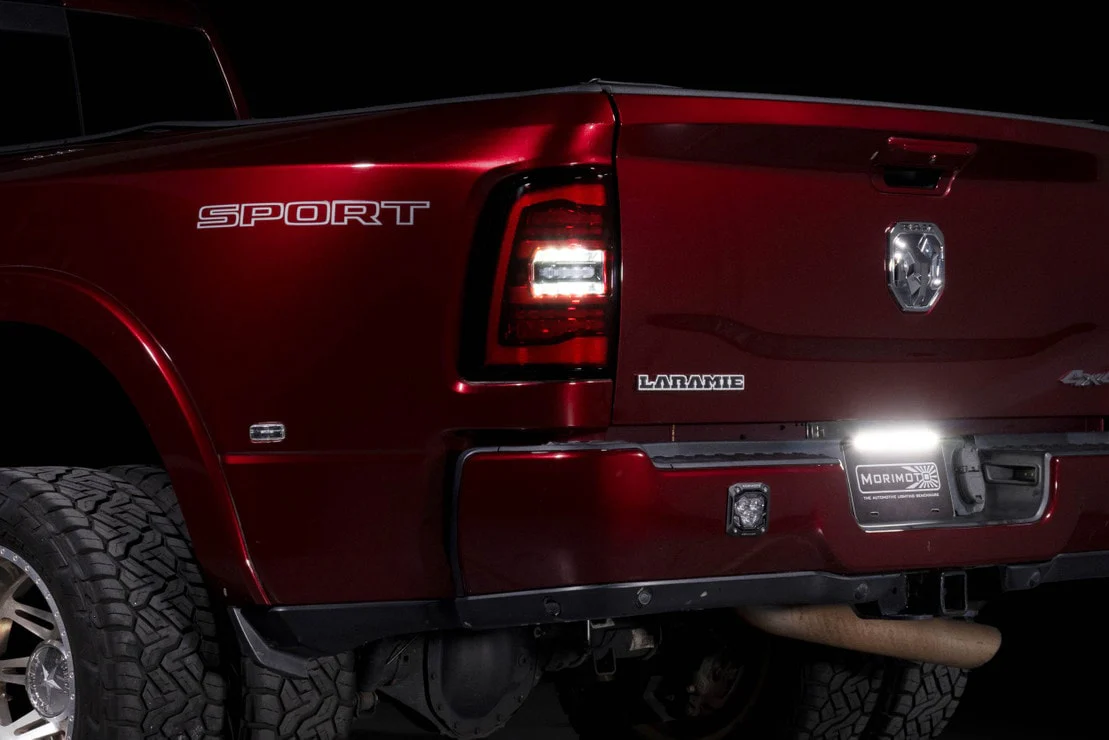

Reverse Lights: Are often over-looked, but not with the Morimoto XB tail lights for your Ram. While they come standard with powerful LED reverse lights, just wait, there's more! Morimoto's BLBB system allows you to plug n play with the optional LED Backup Boost Bar which mounts to the top of your license plate frame and provides an extra 2,700 lumens of controlled light output in reverse. Yeah, Morimoto customers like to see where they're going in reverse too!

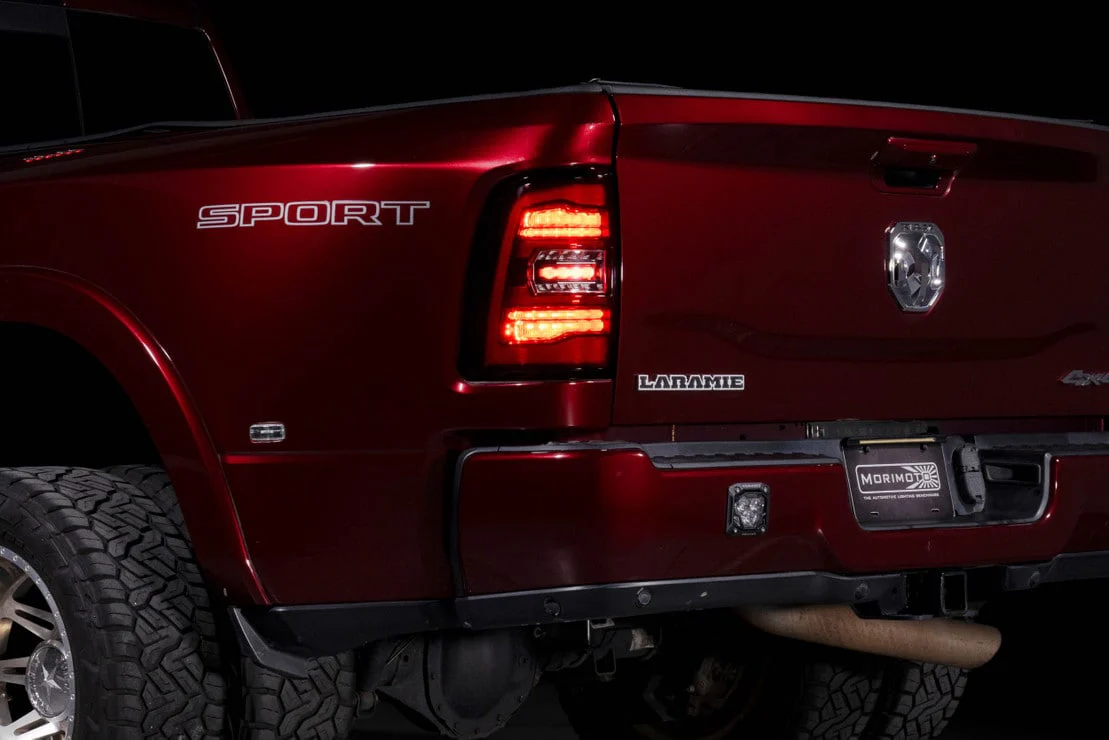

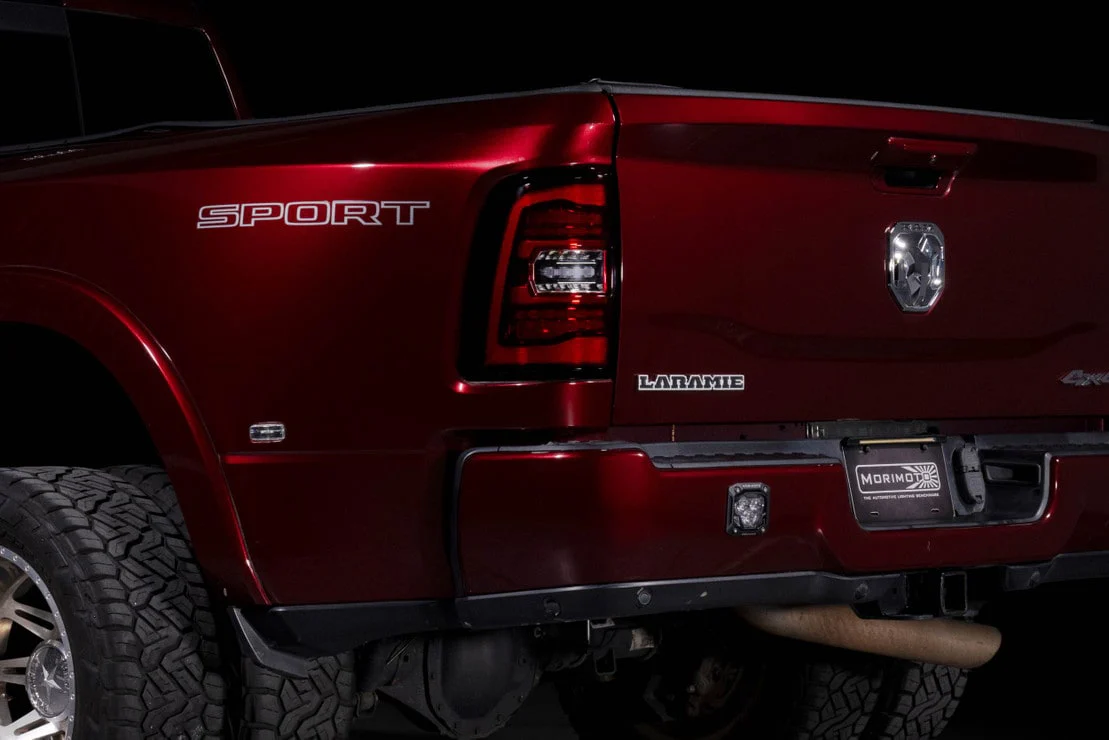

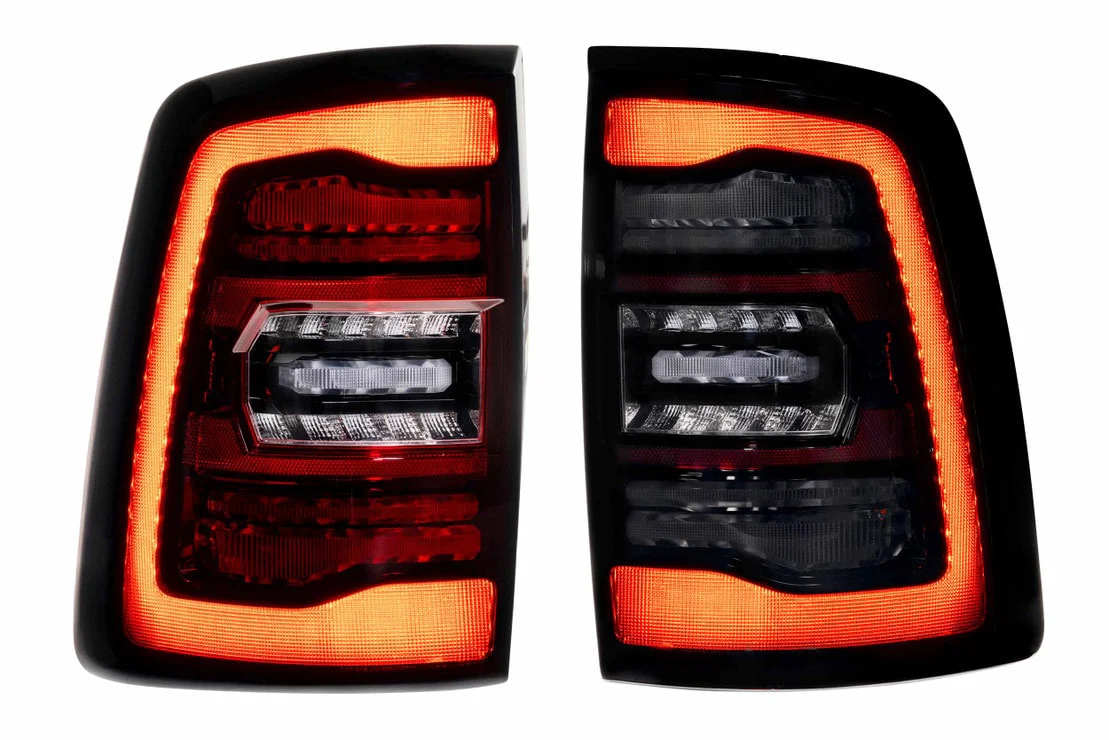

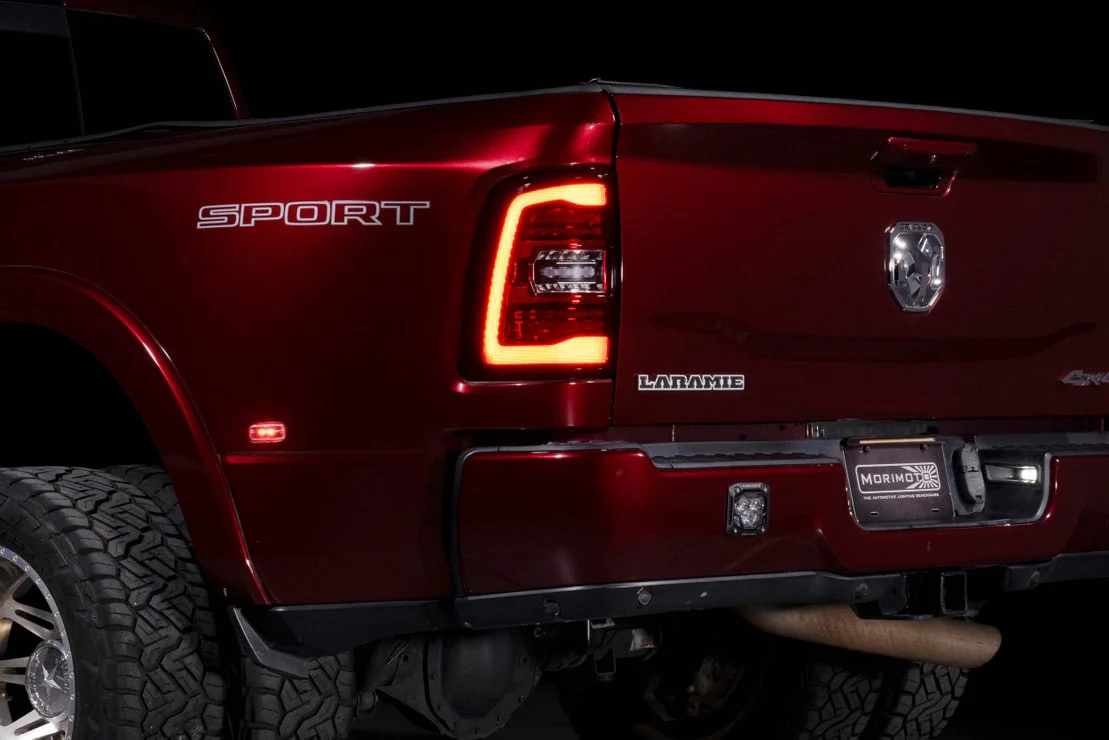

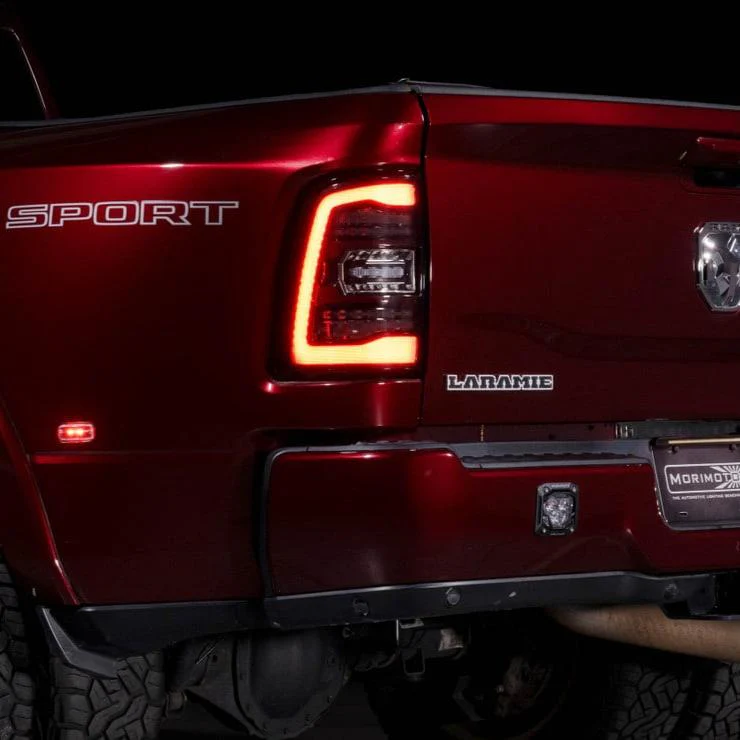

Style: Inspired by the design of the most modern OEM LED tail lights from the current generation Ram truck, these look right at-home on the rear end of the 19+ HD. Two clusters of parallel 3D Optics are illuminated from the rear with integrated TIR optics and serve as the brake light and turn signal. The parking light optic around the outer edge of the lights mirrors the OEM LED setup too and is equally impressive in the intensity department day or night. Pair that with the surrounding muscular trim, optional smoked or red outer lens, and we've easily got what is the best-looking set of aftermarket tail lights on the road for the new HD Ram trucks!

Style and Safety: All Morimoto tail lights are designed to comply with all DOT, SAE regulations for rear-facing lamps. We pride ourselves on offering stylish, high-performance and safe products for serious enthusiasts, which is why all new Morimoto products are verified by trusted third party labs for compliance and are backed with an industry-leading five-year warranty.

Full Compatibility: The XB Tail Lights are compatible with Ram trucks that came stock with the standard halogen/incandescent tail lights, as well as trucks with the OEM LED tail lights without BLIS. They are 100% plug n play on both versions, and all wiring is included in the box.

Compatibility:

• Dodge Ram HD Trucks: 2019+ w/o Blind Spot Monitoring

• OEM Incandescent: 100% Plug n Play

• OEM LED without Blind Spot Monitoring: 100% Plug n Play

• OEM LED with Blind Spot Monitoring: Not Compatible (Will cause error)

• Replaces Dodge Part #: 68361716AD, 68361717AD, 68361715AE

• Compliance: DOT, SAE, FMVSS108 Compliant

• NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

Vehicle Compatibility:

• 2019 Ram HD 2500 3500 4500 5500 trucks (Tradesman, Big Horn, Lone Star, Laramie, Power Wagon, Limited)
• 2020 Ram HD 2500 3500 4500 5500 trucks (Tradesman, Big Horn, Lone Star, Laramie, Power Wagon, Limited)
• 2021 Ram HD 2500 3500 4500 5500 trucks (Tradesman, Big Horn, Lone Star, Laramie, Power Wagon, Limited)
• 2022 Ram HD 2500 3500 4500 5500 trucks (Tradesman, Big Horn, Lone Star, Laramie, Power Wagon, Limited)
• 2023 Ram HD 2500 3500 4500 5500 trucks (Tradesman, Big Horn, Lone Star, Laramie, Power Wagon, Limited)
• 2024 Ram HD 2500 3500 4500 5500 trucks (Tradesman, Big Horn, Lone Star, Laramie, Power Wagon, Limited)
