2023-2026+ Ford F250 Super Duty Baja Designs 7XL Linkable Bumper Light Kit
Experience full adjustment and optimal performance with the Baja Designs 7XL Linkable Bumper LED Light Kit, engineered for enthusiasts seeking customizable lighting solutions. Utilizing our 7XL Linkable, this kit produces 22,134 total raw lumens of forward projected light that has a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your Super Duty truck. This kit comes with everything you need to hit the trail, with wiring fully crimped and trimmed allowing for an easy installation process. All Baja Designs lights are backed by our 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection.

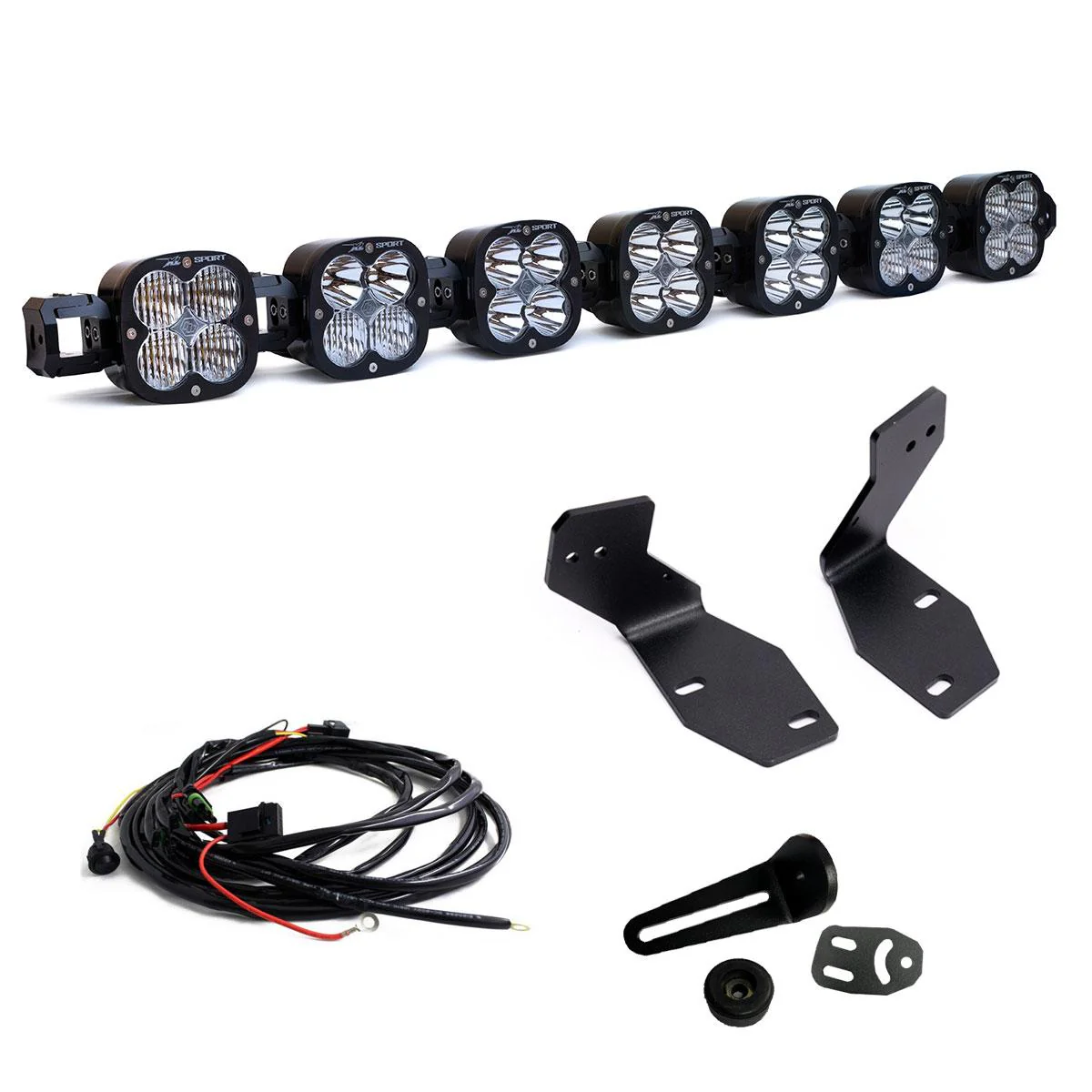

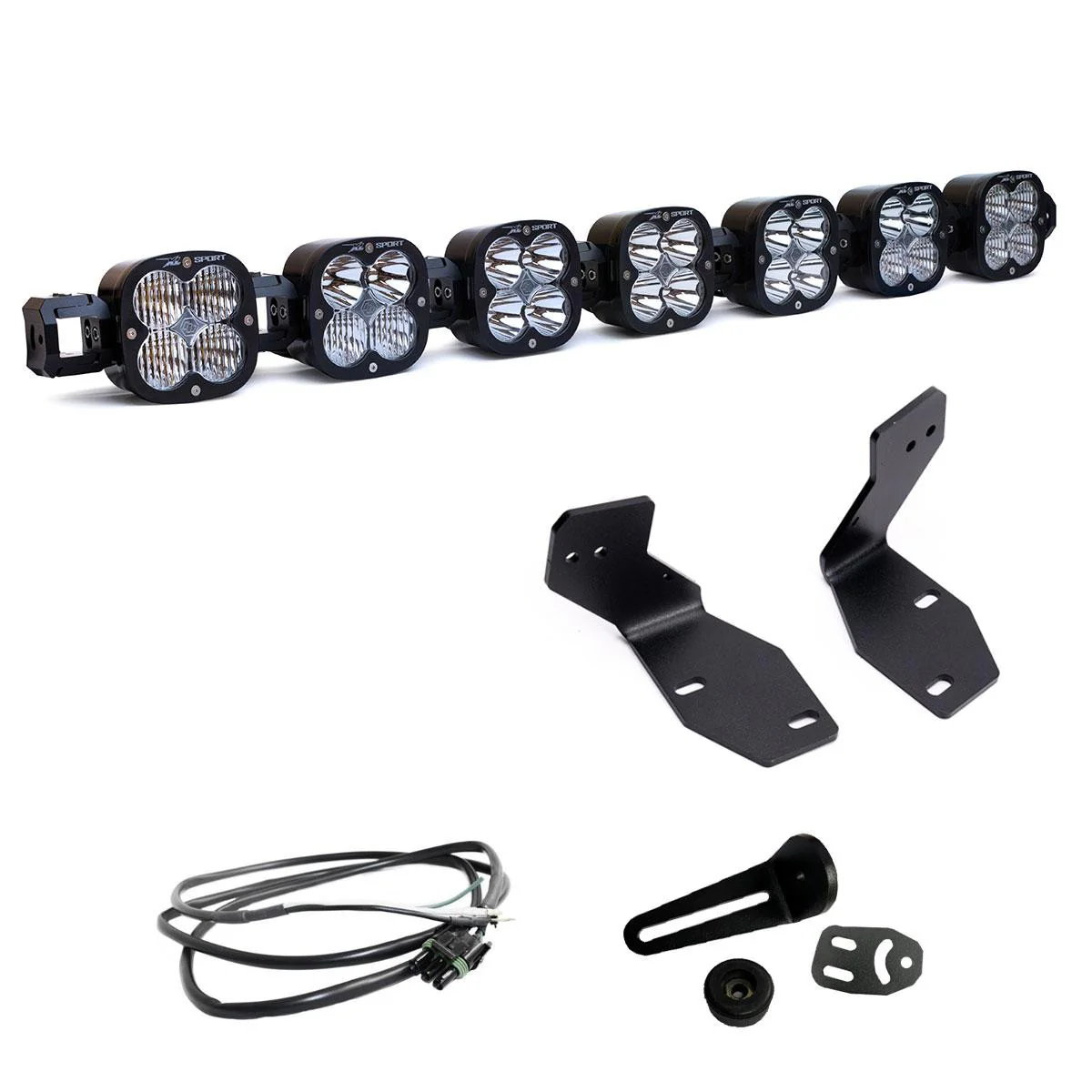

Kit Includes:
- (1x) 7XL Linkable, Clear
- (2x) Mounting brackets
- (1x) Toggle switch on/off harness or upfitter wiring harness
- (1x) Pre-load kit
- All necessary hardware
Specs:
- Lumens: 22,050
- 182W / 14A
SPECS:
Dimensions
| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 39.16 |
Specifications
| Amperage Rating (A) | 14 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 22050 |
| Description | 6XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 7 |
| Lighting Modes | Beam |
| Lighting Quantity | 28 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 182 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Original: $2,970,000.00
-70%$2,970,000.00
$891,000.00More Images
2023-2026+ Ford F250 Super Duty Baja Designs 7XL Linkable Bumper Light Kit
Experience full adjustment and optimal performance with the Baja Designs 7XL Linkable Bumper LED Light Kit, engineered for enthusiasts seeking customizable lighting solutions. Utilizing our 7XL Linkable, this kit produces 22,134 total raw lumens of forward projected light that has a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your Super Duty truck. This kit comes with everything you need to hit the trail, with wiring fully crimped and trimmed allowing for an easy installation process. All Baja Designs lights are backed by our 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection.
Kit Includes:
- (1x) 7XL Linkable, Clear
- (2x) Mounting brackets
- (1x) Toggle switch on/off harness or upfitter wiring harness
- (1x) Pre-load kit
- All necessary hardware
Specs:
- Lumens: 22,050
- 182W / 14A
SPECS:
Dimensions
| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 39.16 |
Specifications
| Amperage Rating (A) | 14 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 22050 |
| Description | 6XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 7 |
| Lighting Modes | Beam |
| Lighting Quantity | 28 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 182 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
